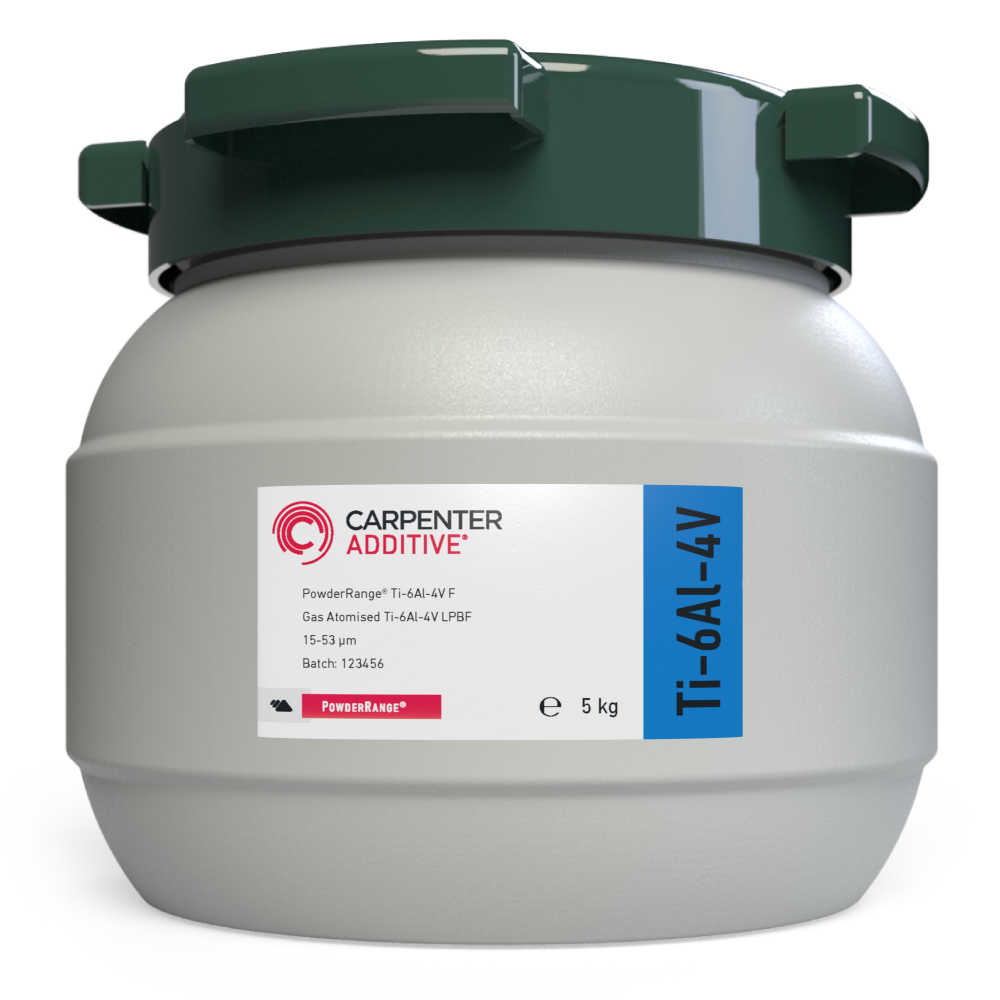

PowderRange® Ti64

Particle Size Distribution



Size guide

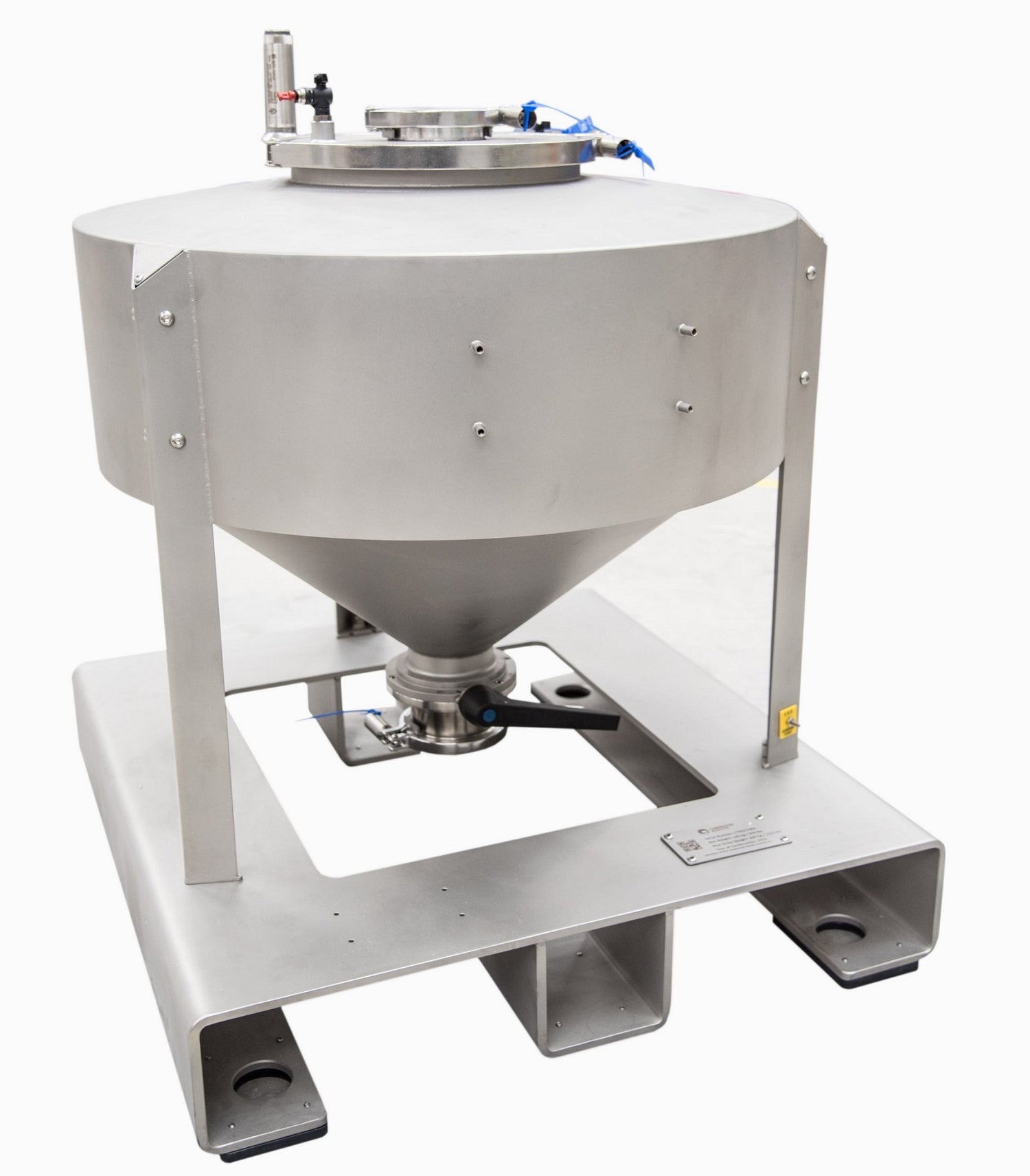

Hopper Info

You must be logged in to view pricing. Register for an account here


Sign in



ASTM F3001

Machine Type:



Alternate Names:

Ti.Gr.23, CL41TIELI, TI64ELI, Ti6Al4V ELI-0406, TiAl6V4

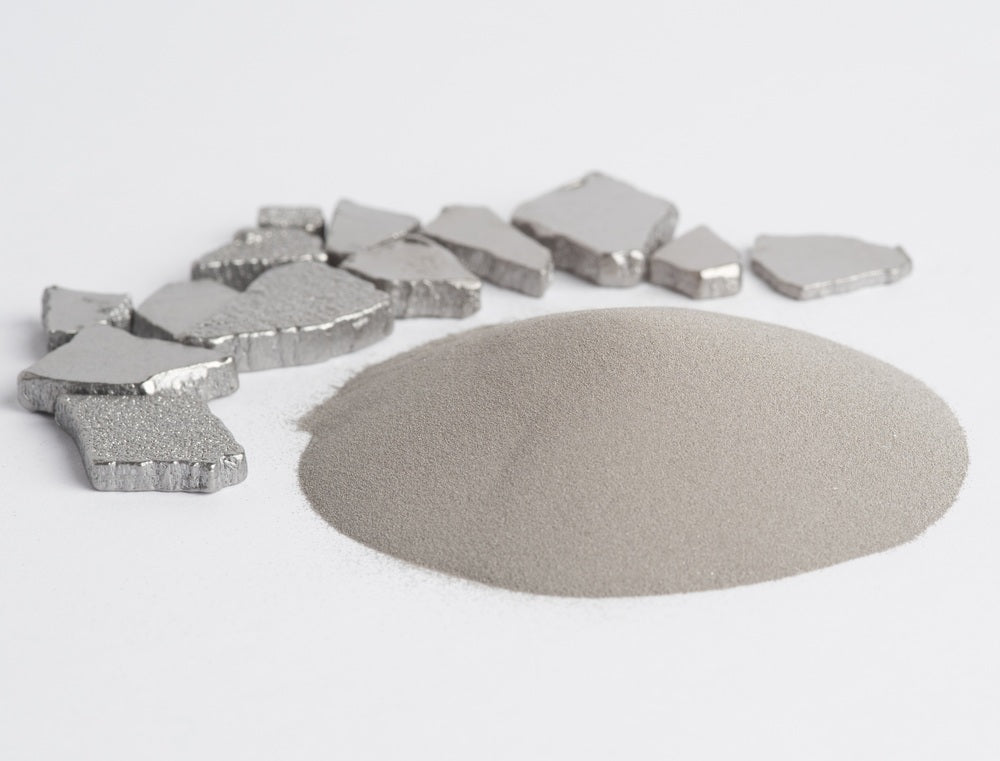

PowderRange® Ti64 (Titanium-6% Aluminum-4% Vanadium, Ti-6Al-4V) is a high-performance titanium alloy characterized by excellent mechanical properties with a low specific weight and good corrosion resistance. Grade 23 (known as ELI) has lower limits for interstitial elements and is considered the higher purity version. Grade 23 displays increased ductility and fracture toughness with a slight reduction in strength over Grade 5, due to the reduction in interstitials. PowderRange Ti64 complies to ASTM F3001.


One manufacturing method for Ti-6Al-4V powder is plasma atomization, resulting in superior sphericity and low residual elements such as oxygen, but introduces the risk of high-density inclusions that are inherent to the plasma atomization process. Certain gas atomization techniques such as EIGA, can also achieve comparable residual element levels with acceptable morphology for powder-bed additive machines. EIGA uses a method which is in a ceramic- and tungsten-free process which reduces the risk of high-density inclusions. PowderRange® Ti64 can be processed with argon shielding gas.

  • Titanium Balance
  • Aluminum 5.50–6.50 %
  • Vanadium 3.50–4.50 %
  • Iron 0.25 %
  • Oxygen 0.13 %
  • Carbon 0.08 %
  • Iron Balance
  • Nitrogen 0.03 %
  • Hydrogen 0.0125 %
  • Yttirum 0.005 %
  • Other, each < 0.10 %
  • Other, total < 0.40 %

Key Properties

  • High strength-to-weight ratio
  • Wear and corrosion resistant
  • Fracture toughness and fatigue resistance
  • Excellent biocompatibility
  • Superior weldability in laser AM processes
  • Applications:

  • Orthopedic/dental implants
  • Medical fracture and surgical tools
  • Gas turbine engine parts
  • Aircraft and spacecraft components
  • Automotive and motorsport components
  • Markets:

  • Aerospace
  • Automotive
  • Energy
  • Medical
